LS27 digital mains detector set
Mains detector set LS27, digital
MAINSDETR-SET-LS27-DIGITAL
Art.-no. 5634004003
EAN 4068362032493
Individual price display after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +420 323 041 141.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Protected against external voltage (voltage-resistant) up to 400 V
- Continuously adjustable sensitivity
- Adjustable transmission and reception level
- Optical LED display
- Acoustic tone generating alarm

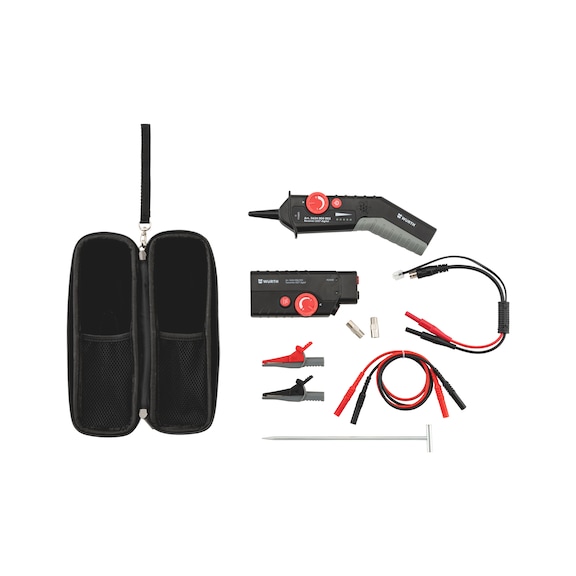

Scope of delivery
- 1x transmitter
- 1x receiver
- 1x alligator clip
- 1x each of coaxial, F and RJ11 adapters
- 1x ground spike
- 1x quick-access case
Notice
- Batteries not included in scope of delivery
- Uses a digital signal that simplifies the search for cables and wires in the ground or in walls. In this way, the receiver can be used to locate the other end of the cable quickly and accurately (even when located in walls and cable ducts) using visual and acoustic signals.
- When measuring, cables or wires do not need to be voltage-free in order to be located
Product information
Datasheets(X)
Application area
- Easily locate cables and wires in the ground and in walls
- For telecommunications and network applications
Nominal voltage | 400 V |
Length of test cable | 600 mm |
IP protection class | IP 31 |
Min./max. operating temperature | 5 to 40 °C |
Material of housing | Plastic |
Battery designation | 1.5 V Mignon AA |
Number of rechargeable batteries/batteries | 5 PCS |
Rechargeable battery/battery permanently installed | No |
